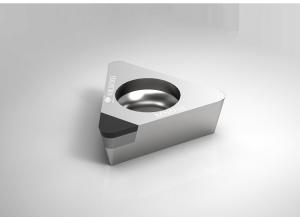

TPGW 110302 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
WORLDIA
Our products mainly cover high-precision PCBN/PCD/CVD cutting tools, solid carbide tools,
holders as well as PCD/CVD materials.
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose PCD and PCBN materials
to provide the universal cutting effect.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide
fast and efficient service for domestic and foreign customers to meet their demand for standardized and
universalized tools.
Main products:
PCBN insert: 7 materials/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy
.
Polycrystalline cubic boron nitride(CBN) is a material with an excellent hot hardness that can be used at very high
cutting speeds. It also exhibits good toughness and thermal shock resistance.
PCD insert: Providing stable, universal, high efficient cutting effect.
PCD Turning Inserts can be used in many fields including the car industry, energy equipment, and the wood and stone
industry. It can be used to cut and process different materials such as nonferrous metal, tungsten carbide, ceramic,
nonmetal, and composite material.
Advantages:
·High quality
·Low cost
·Factory direct supply
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP).
PCD with flood coolant can also be used in titanium super-finishing applications. |
| ·Aluminum and aluminum alloys |
| ·Copper, brass, and bronze alloys |
| ·Zinc and magnesium alloys |
| ·Carbon Fiber |
| ·Epoxy resins |
| ·Plastics |
| ·Fiberglass composites |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade |
| ANSI Code | ISO Code | Tips | IC
mm | S
mm | R
mm | Φd
mm | LE
mm | MND
10 |
| TPGW 220.5 | TPGW 110302 | 1N | 6.35 | 3.18 | 0.2 | 3.3 | 2.5 | √ |
| TPGW 221 | TPGW 110304 | 1N | 6.35 | 3.18 | 0.4 | 3.3 | 2.5 | √ |
| TPGW 222 | TPGW 110308 | 1N | 6.35 | 3.18 | 0.8 | 3.3 | 2.5 | √ |
| |
| TPGW 330.5 | TPGW 160402 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 | √ |
| TPGW 331 | TPGW 160404 | 1N | 9.525 | 4.76 | 0.4 | 4.4 | 2.5 | √ |
| |
| F-TPGW 222 | F-TPGW 160408 | 3N | 9.525 | 3.18 | 0.8 | 3.3 | 15.3 | √ |
| Feed rate recommendation |
| Nose radius(mm) | Ra um |
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 |
| Feed Rate f (mm/rev)≤ |
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
